Stanley Hand Plane Tote Template 16-Piece SetInspiredby Dave Corinth
The templates in this listing were modeled from original Stanley Totes listed below

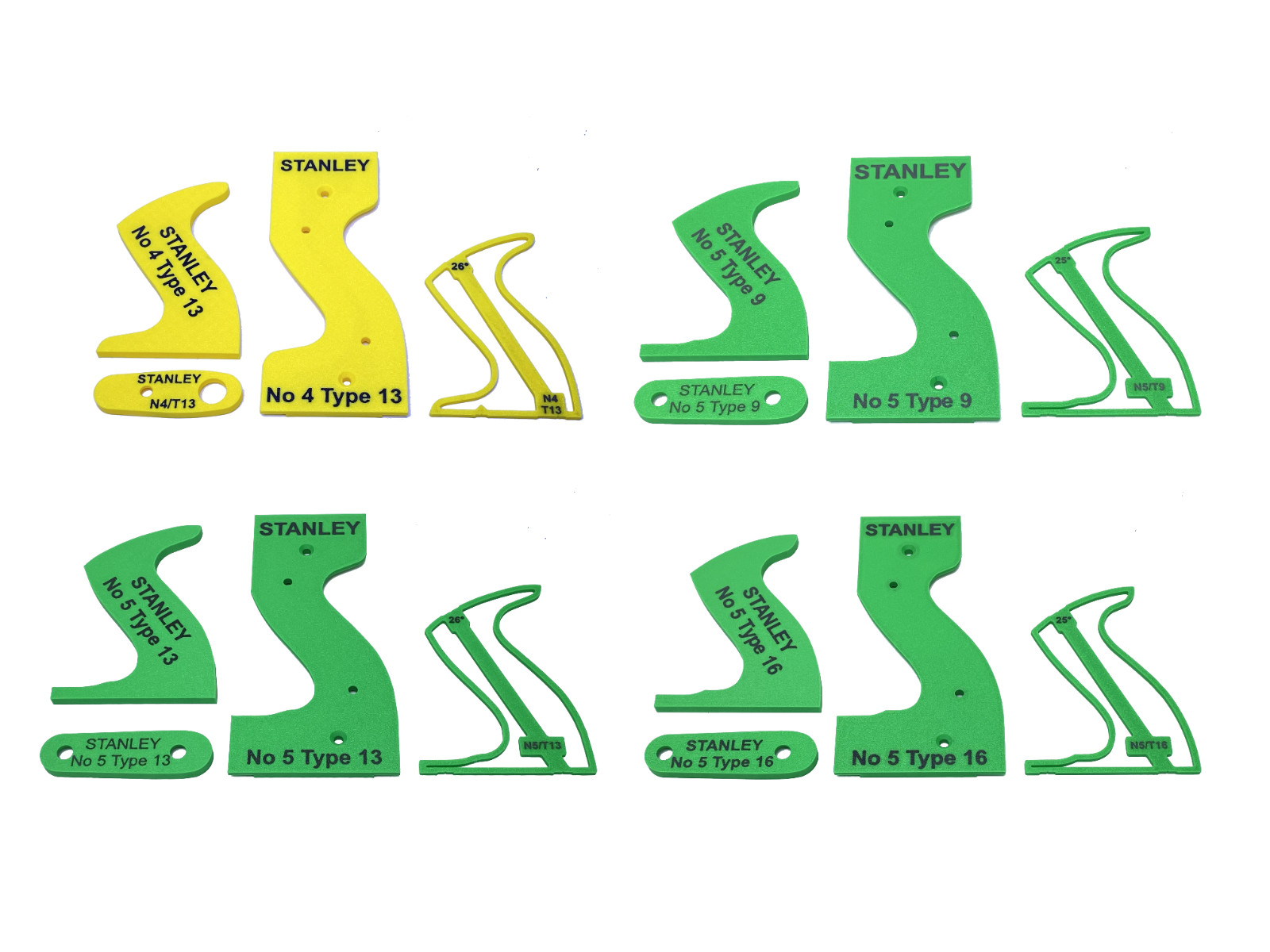

This 16-Piece Set Includes the Following: 1 No 4 Type 13 4-Piece Tote Template Set (also works for No. 3) 1 No 5 Type 94-Piece Tote Template Set (also work for No's 4-1/2, 5, 5-1/2, 6, 7, 8 and 10) 1 No 5 Type 134-Piece Tote Template Set(also work for No's 4-1/2, 5, 5-1/2, 6, 7, 8 and 10) 1 No 5 Type 164-Piece Tote Template Set(also work for No's 4-1/2, 5, 5-1/2, 6, 7, 8 and 10)
The templates also show the tote-rod bore angle from our high resolution three dimensional scans.This tote-rod bore angle is not a critical dimension. Some replacement tote makers specify anywhere from 25° to 27° and they are all correct because this small difference is of little practical importance. The 7/32in.(#12) plain-steel rod has ample clearance within the 5/16” bore and can flex slightly to accommodate minor angular variation. The tote base angle and mating geometry are considerably more important and should be accurately measured from the original tote handle if you have it or plane casting base to ensure firm, even seating.If you have a router table and a 15/16in. (0.938in.) bullnose bearing router bit, these template sets will assist you in making your own replacement tote handles. One other option is to use a flush trim router bit to follow the template profile and then contour each side with a 1/2in. (0.500in.) round-over router bit and finish by hand
M-WTCA members will receive a 10% discount refund. Just send us a message and let us know you are an M-WTCA member. We will send your 10% discount refund promptly through . Thank you for your support of the Mid West Tool Collectors Association.
