Williams Multigame JROK JAMMA PCBThis is the LATEST Version of this board available which is v1.34 and not some old version that others are selling!!!***BRAND NEW***

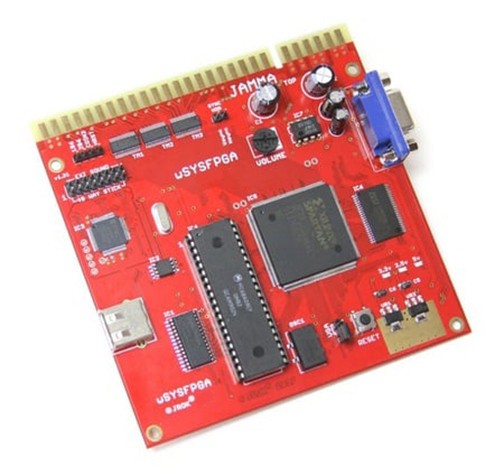

LAST ONE!!!No other items are included.All-in-one JROK design integrating video/CPU board and soundboard. Standard JAMMA connector with optional Horizontal & Vertical video sync outputs.Non-emulated hardware design replicating the original game board logic in FPGA. Micro-controller based integrated soundboard.
Supported games:
- Defender - (with optional Turbo Mode)
- Defender - White ROM Set
- Defender - Green ROM Set
- Stargate - (with optional Turbo Mode)
- Robotron
- Robotron - Tie Die ROM Set
- Joust
- Joust - Red ROM Set with Pterodactyl - Stereo with an external soundboard
- Blaster Kit - Single Speaker
- Sinistar *
- Sinistar - AMOA *
* Games require the monitor to be mounted vertically.
Robotron Tie Dye Features:
- Number of lives shown at bottom of the screen for each player (still wraps at 256)
- 10 Million digit + scores are correctly saved in the High Score table which goes up to 9,999,999
- Extra ships now be setto 10, 15, 20, 25, 30, 40, 50, 60, 70or 75K
- Set high score initials to "4" to start the game at 99,900,000 to see Goldilocks mode, high score will not be saved
- If three blanks are entered for your initials then the score will not be saved
- Default initials changed for entries 3, 4 and 5
Features:
- VGA DB15 video out port
- Zero lag non-frame buffered display
- VGA monitor support, onboard jumper to enable VGA
- Game EPROM images/firmware updates are loaded from USB flash drive
- Defender & Stargate Turbo Mode - Faster gameplay
Hardware settings/options:
- Seamless boot-to-specific-game on power-up
- Cocktail support for games which have a cocktail mode option
Please know how to install as we do NOT provide any technical support on this item.
All electronic and arcade items are NON-REFUNDABLE.Thank You!!!
