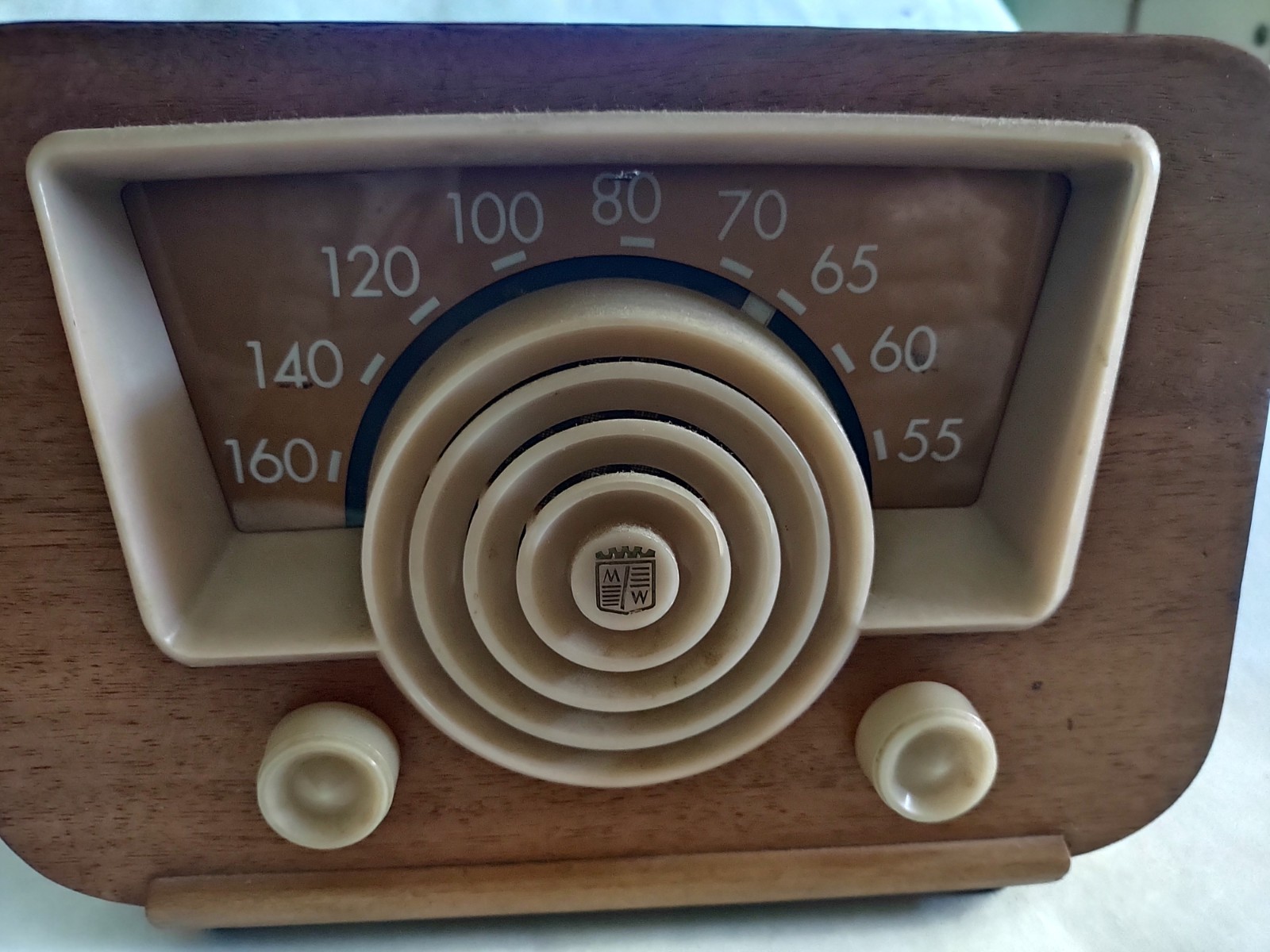

This is a Vintage Montgomery Ward Airline vacuum tube radio, specifically Model No. 84BR-1816A manufactured around 1948. It is a 5-tube AM broadcast receiver (superheterodyne) using tube lineup 12BE6, 12BA6, 12AT6, 50B5, and 35W4.
This radio is Untested / Sold As-Is for parts or repair.\"
On the side edge of the back panel where it mounts to the wooden cabinet.
It reveals the embossed text \"WARDS AIRLINE RADIO\" stamped vertically into the fiberboard material. Below that, the faint text reads \"MODEL 84BR-1816A\".
Cosmetically this Radio is in very good original condition with typical age wear, scuffs, and finish scratches on the wood cabinet. The back panel, model tags, and internal tube diagram are fully intact and crisp. The chassis is clean. The radio is electronically unrestored and sold as-is/untested. The front dial glass is not cracked and is clea. All of the front plastic knobs are present. There is no large splits or deep gouges in the wood on the top or sides.
Additional Positive Points: The internal metal chassis looks clean and free of the heavy, destructive rust often found on radios stored in damp basements. The critical model ID labels, tube diagrams, and UL safety stamps are remarkably well-preserved, highly readable, and firmly attached. This is a ++ for collectors because it makes servicing much easier.The back panel fiberboard is fully intact rather than warped, torn, or missing chunks, which is very common for a 78-year-old unit. Note, The power cord has been updated at some point to modern vinyl, meaning the dangerous, crumbling original rubber cord is already gone.
Crucial Safety Warning for Use Today.
This is a classic \"All-American Five\" (AA5) style AC/DC radio. It does not have a power transformer. One side of the wall power cord connects directly to the metal chassis. There is a shock hazardIf the plug is inserted a certain way, the entire metal chassis inside can become \"hot\" with 120V electricity.
As a precaution, always keep the back panel, wooden cabinet, and plastic knobs completely installed so you cannot accidentally touch the metal chassis or screws while it is plugged in.
The following is information stamped on the back which may be hard to read from the photos:
(1) The text on the back panel reads: EXTERNAL ANTENNA CLIP with an arrow pointing toward the attachment terminal.
Below it, the instructional text explains: \"An outside antenna is [helpful or necessary] if you are at a distance from [stations, but] an outside antenna installation is not required.\"
Therefore, this vintage radio has a built-in loop antenna inside the cabinet that works fine for strong, local AM stations.
If you live in a rural area or want to pick up weak, distant signals (shortwave or distant AM stations), you can attach a long piece of insulated copper wire (a \"longwire\" antenna) to that specific clip to greatly improve reception.
(2) An image shows the complete tube layout diagram and electrical specifications printed on the back panel of your Montgomery Ward Airline Model 84BR-1816A. The diagram shows exactly where each vacuum tube is located on the metal chassis. The required tubes for your radio are:
• 12BE6: Pentagrid Converter (Mixer/Oscillator)
• 12BA6: IF Amplifier (Intermediate Frequency)
• 12AT6: Demodulator / First Audio Amplifier
• 50B5: Audio Power Output (Drives the speaker)
• 35W4: Half-Wave Vacuum Rectifier (Converts AC power to DC)
(3) Electrical s specifications are;
• Voltage Compatibility: 105 to 125 Volts A.C. or D.C. (50 to 60 Cycles).
• Power Consumption: 35 Watts.
• D.C. Power Note: The text mentions that if you are using Direct Current (D.C.) power and the radio doesn\'t play after one minute, you simply need to reverse the plug in your wall receptacle.
(4) RCA Patent License: The text reads, \"This apparatus uses inventions of United States patents licensed by Radio Corporation of America.\" RCA held the foundational patents for superheterodyne radio circuits during this era, requiring other brands like Montgomery Ward to display this legal notice.
(5) Underwriters\' Laboratories Inc. Inspected Radio Receiver\", which was the standard industry certification seal during the late 1940s. It indicates that the radio met basic electrical safety and fire hazard prevention guidelines when it left the factory.
Note however, because components like paper and electrolytic capacitors naturally degrade, dry out, and short-circuit over decades, this historical UL certification no longer guarantees safety today.
