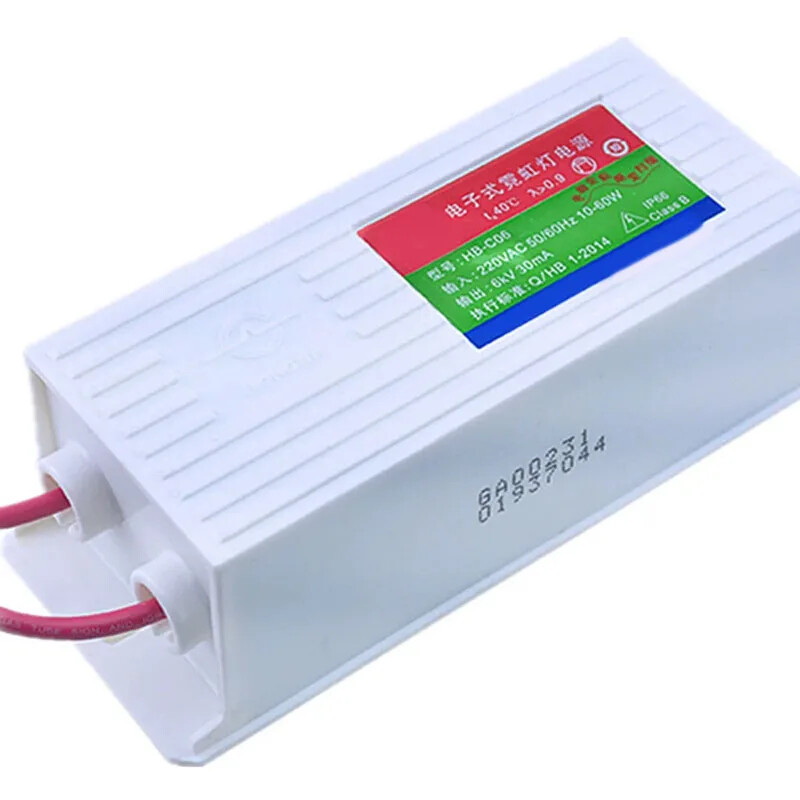

HB-C06 Neon Light Transformer Neon Light Electronic Ballast 60w Power Supply With 6 Meters Output 6kv
Model: HB-C06
Size: 147*58*42MM
Installation size: 131-5*2MM
Input: 220VAC 50/60HZ
Power: 10-60W
Output: 6KV 30mA
Power factor: ≥0.9
Usage environment: -25℃～40℃
Input characteristics: There is no large current impact during startup, the circuit input does not contain filter electrolysis, and the power supply interference is small, which effectively reduces the impact on the scanner and greatly increases the life of the transformer and scanner; the gradient is smooth and flicker-free. It is especially suitable for large billboards controlled by flashing, gradient and full-color scanning; it is also suitable for continuous working light boards;
The load capacity of the transformer will change due to the following conditions:
The longer the output wires at both ends of the transformer, the lower the load capacity of the transformer;
The lamp inflation pressure should comply with the air pressure value in the table. If the air pressure is too high, the load capacity of the transformer will be reduced accordingly;
The load length in the table is based on the data measured at an ambient temperature of 4°C. For mercury-filled neon lamp tubes, if the working environment temperature is lower than 4°C, the load length of the lamp tube should be reduced by approximately 25% based on the data in the corresponding table.
