Description: Original Motor\'s vacuum and wiring diagram manual pages for the 1970-1974 Chrysler full size models: Imperial, Newport, 300, New Yorker, and Town & Country. Includes convertible, coupe, hardtop, sedan, and station wagon models. This section of the manual has 52 pages. Pages are loose. Includes vacuum circuits for A/C, heater, speed control; electrical circuits for A/C, heater, body and rear lighting (70-73), complete body and chassis wiring (74), console wiring (70-73), engine compartment, flasher location, front end lighting, fuse data, fuse block location, headlamp beam and sentinal circuit, instrument panel (70-73), lamp bulb data, power door locks, power seat, power windows, power seat back release (71-73), power tailgate (74), rear end lighting (74), seat belt interlock (74), seat belt warning (73), speed control, and windshield wiper (74). Good used condition. Shows some handling and storage age. Has 8 very small pin holes across the top of the pages.

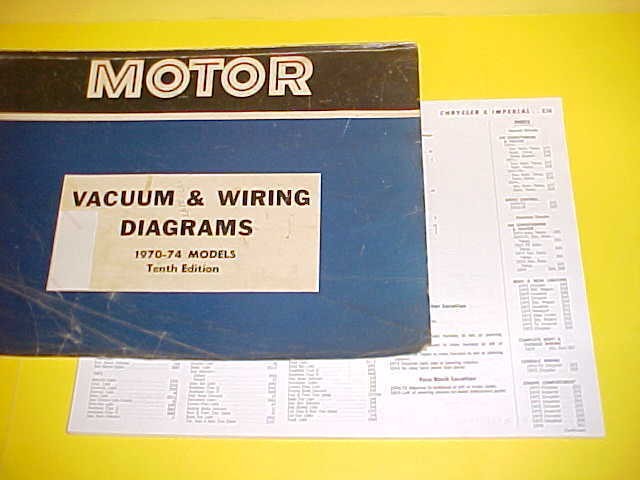

Book cover shown in the photo is there to show which book this information came out of and is not included.
