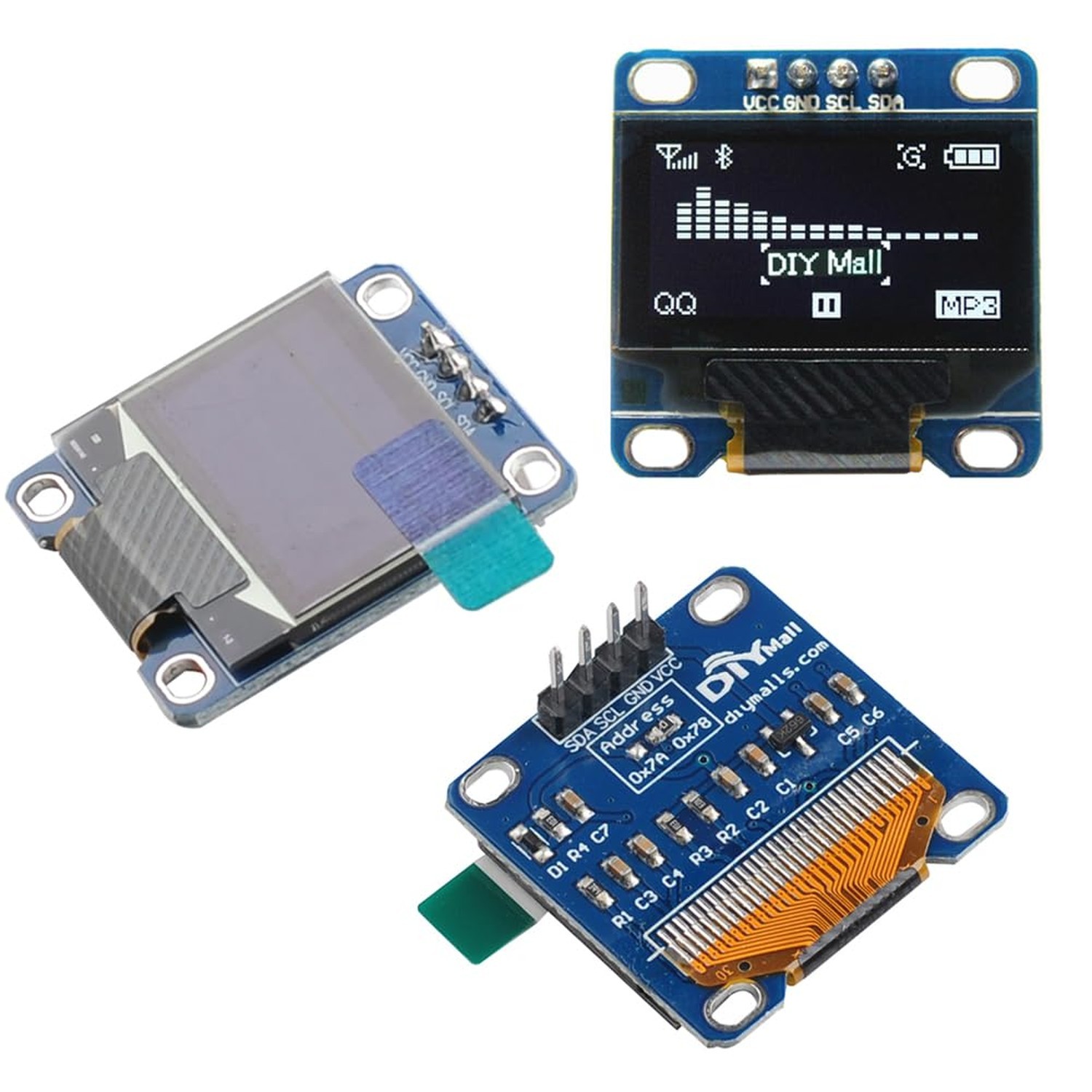

0.96 inch OLED Display Screen Module 128x64 1306 of SS - D White for sale

0.96 inch OLED Display Screen Module 128x64 1306 of SS - D White
Product Details

0.96 OLED connects easily using four lines (power, ground, data, and clock) at address 0x3c. The address is changeable with some soldering, but unless you really need to, dont risk it.
The actual (7-bit) address of OLED is 0x3C, not 3D, not the (8-bit) address printed on the back of screen said 0x78 or 0x7A. 0x78 is 0x3C left-shifted by 1 bit, which is how addresses are sent on the bus. You must properly define this address in any sketch, or you will not get data sent to the display and may mistake it for being DOA.
One of the great things about OLED display is that they are by design, light emitting. You can have the displays in total darkness, and you can easily read them. In direct sunlight, they are still can be read, but not recommmended to expose to the sun for extended periods of time.
This tiny oled display is widely used in DIY projects: Smartwatches, Small weather station, Alarm clock, Computer resource monitor (CPU/GPU utilization percentages, RAM availability, core temperatures) etc.
There is a removable transparent film on each OLED glass surface for scratch resistant protection until use.

0.96 inch OLED Display Screen Module 128x64 1306 of SS - D White:
$21.43
